Stretch hood film

No.004
During the packaging process, Stretch hood film does not require a heat source; the film itself possesses exceptional stretching and shrinking capabilities. After being stretched and wrapped around the product by a sleeve wrapping machine, the Stretch hood film tightly wraps the product using its own shrinking properties, thereby completing the packaging process.
Download
View all downloads
  • Stretch hood film,Jiangmei Packaging,Stretch hood film | Jiangmei Packaging
  • Stretch hood film,Jiangmei Packaging,PE Stretch Hood Film - Stretch Hood Film Manufacturer
  • Stretch hood film,Jiangmei Packaging,Stretch hood film | Jiangmei Packaging
  • Stretch hood film,Jiangmei Packaging,Stretch hood film | Jiangmei Packaging

Description



Product Overview

Pallets of bagged cement, fertilizer, chemicals and minerals leave the plant protected on all five faces after a single machine cycle. That is the job stretch hood film is built for: a tubular PE film supplied on rolls, stretched open by an automatic hooding machine, drawn down over the load and then released so its own elastic recovery grips the pallet from the top edge to the base.

This is not a filling material and it is not a bag. It goes on after the bags are stacked and the pallet is built, and for most loads it is the only outer layer needed — the same sleeve that covers the sides also closes over the top.

Nothing in the process is heated. There is no shrink tunnel, no warm-up or cooling time, and no hot surface next to goods that may not tolerate heat. The film's own stretching and shrinking capability completes the wrap, which is why the cycle is a single downward stroke of the machine rather than a sequence of passes around the pallet.

In daily operation the rolls sit beside the hooding machine and are changed when a roll runs out; the hood is applied at the end of the palletizing line, before the pallet goes to the warehouse or the container. Plants that already run a hooding machine use the film as their standard export pack. Plants moving away from wrap and top sheets use it to take a manual step out of every pallet.

Because stretch hood packaging is one continuous sleeve rather than overlapping wrap turns, there are no loose film ends to catch on a container wall, on racking or on the next pallet in the stack. The load arrives with the same tight, square shape it had when it left the line.

Inside a Stretch Hood Cycle

  1. Load the roll — mount the film roll on the hooding machine and thread the tube through the hooding head.

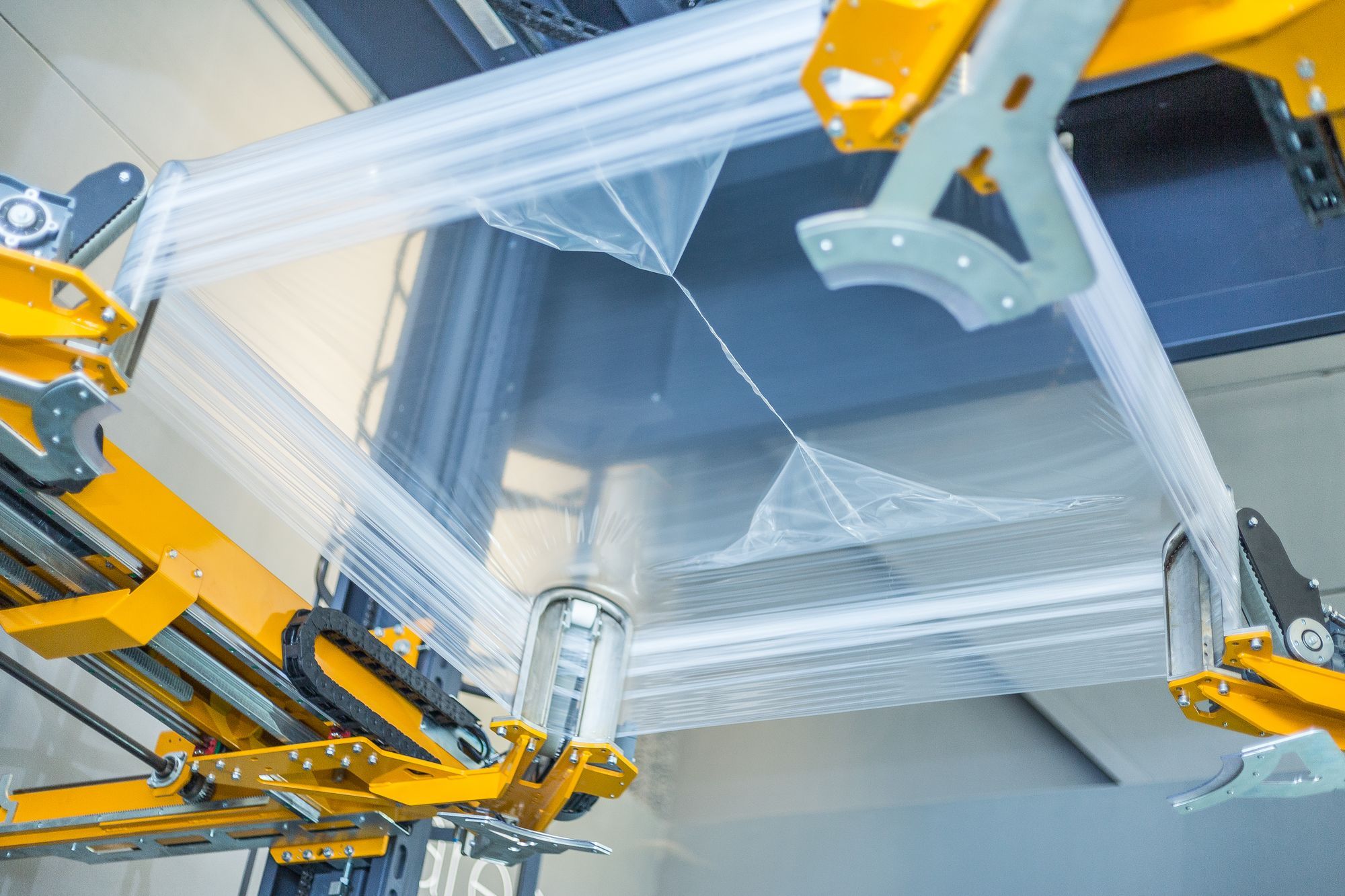

  2. Cut and open a sleeve — the machine measures the length it needs, cuts a section of stretch hood film and stretches it open on the spreader.
  3. Draw the hood over the pallet — the opened sleeve is pulled down from above, past the top layer of bags and all the way to the base of the load.
  4. Release and let it recover — the spreader withdraws and the film springs back. This recovery is the whole principle of a stretch hood: no heat, no adhesive, just a film that wants to return to its original size and cannot, because the load is in the way.
  5. Take the pallet away — the hooded load moves straight to the warehouse, the racking or the container. There is no cooling stage and no separate top sheet to fit afterwards.
  6. Check the hood before it leaves the line — the film should sit flat across the top, run straight down the corners and reach the base of the pallet without a gap.

Key Features

Feature Benefit
Cold wrapping, no heat source Lower energy cost, no shrink tunnel and safer operation next to bagged goods
Five-side protection in one cycle Top and all four sides covered in one pass; replaces a stretch wrap pass plus a separate top cover
Strong elastic holding force Load stays compressed and stable on the pallet through transport and stacking
High puncture and tear resistance Reliable even with sharp-cornered or heavy loads
Dust, moisture and weather barrier Keeps bagged goods protected in storage, in open yards and in transit
Custom width and gauge Matched to your hooding machine and load
Industrial stretch hood performance Consistent gauge and roll build keep an automatic sleeve line running steadily
Clear film option Barcodes, labels and lot markings stay readable through the hood

Material & Construction

The film is co-extruded PE based on LLDPE, built as a tube rather than a flat sheet. Co-extrusion is the reason one film can be both tough and highly elastic: separate layers are given separate jobs — mechanical strength, elastic recovery, and the surface behaviour that lets the sleeve come off the spreader cleanly — instead of asking a single resin to do everything at once.

Tubular construction matters on the pallet, not just on the roll. The hood that goes over the load is a continuous closed loop of film, so there is no longitudinal seam running down one face of the pallet and no overlapping wrap turns that can unwind under load.

Elastic recovery is what actually holds the load. The resin balance decides how far the film can be stretched before application and how firmly it returns afterwards, which is what keeps a slightly uneven stack of bags from settling and working loose in transit.

Gauge is chosen against the job: denser, sharper-cornered loads concentrate stress at the corners of the pallet, while light, stable loads do not need the same amount of material to keep their shape. Width follows the pallet footprint and the machine rather than the other way round.

Additives adapt the film to where it will stand. UV stabilization is optional and is normally added for loads that spend time in open yards; pigments produce the opaque white and coloured versions used to identify a load or keep it out of view.

Co-extrusion is also what makes custom stretch hood film practical. Layer balance, folded width and gauge can be set for your machine and your load, so a plant running an unusual pallet size is not pushed into a stock specification that half fits.

Pallet Load Applications

  • Cement and dry mortar bags on pallets — the classic application: heavy, dusty loads that need a tight hood before the pallet goes into store or onto a truck.
  • Fertilizer and chemical bag loads — products that have to stay dry in yards, sheds and containers, where a wrap-and-top-sheet pack tends to loosen at the corners.
  • Mineral and building-material loads — dense, sharp-cornered bags that put an industrial stretch hood under real strain at the corners of the pallet.
  • Bagged granulates — salt, sugar, resin pellets and similar products that need a clean, square, stable pallet for export.
  • Outdoor and yard storage — stretch hood packaging keeps rain, dust and yard dirt off the bag surfaces and stops the top layer from weathering first.
  • Contract packers and third-party warehouses — operations that palletize for several clients and want one stretch hood film supplier to standardise film across their lines.

Specifications

Item Options
Material Co-extruded PE (LLDPE-based)
Film type Tubular stretch hood film, single-wound or gusseted
Thickness 80–150 μm
Folded width Custom design
Color Clear, opaque white, colored
Printing Optional, custom design
UV stabilization Optional
Roll length / rolls per pallet Custom design
Roll winding Wound to suit the draw direction of your hooding head
Core Sized to fit your machine's chuck
Gauge consistency Held within the tolerance agreed for your order
Surface Smooth plain film for even spreading on the spreader
Machine compatibility Made to your hooding machine brand and model
Packaging Rolls wrapped and palletized

Stretch Hood vs. Shrink Hood vs. Stretch Wrap

  • Choose stretch hooding when the line already runs an automatic hooding machine and every pallet has to come off with the same tight, uniform hood at the lowest energy use of the three formats.
  • Choose shrink hood only if you already run a heat tunnel and need a very tight, fully enclosed look; the tunnel, the warm-up time and the heat are part of that choice.
  • Choose stretch wrap for smaller operations wrapping pallets by hand or on a turntable wrapper, where the volume does not justify an automatic machine.
  • What changes when you move from wrap to a stretch hood: the top sheet disappears, the number of passes drops to one, and the hold no longer depends on how consistently an operator overlaps the film.
  • Where stretch hood packaging earns its place: high-throughput plants that need every pallet to arrive in the same shape, shift after shift.
  • Where it does not fit: very low volumes, one-off pallets, and loads that must be fully sealed against gas or light — those need a different pack.

Manufacturing & Quality

Jiangmei Packaging has been a stretch hood film manufacturer since 2008, working from a 60,000 m² plant in Changxing, Zhejiang, where film blowing, printing and converting run under one roof. The factory holds ISO 9001, ISO 14001 and ISO 45001 certification.

Blowing the film ourselves is what keeps the specification stable. Gauge, folded width and roll build are set on our own lines instead of being bought in from a third party, so a repeat order arrives with the same running behaviour as the first one.

We also make the bags that sit on the pallet — FFS film rolls, FFS tubular bags, open-mouth bags, valve bags, paper-plastic composite bags and FIBC bulk bags — which means a plant can buy the bag and the hood from one supplier and have both matched to the same filling and palletizing routine.

Our film and bags are exported to the Middle East, Latin America and other markets, so export packing and repeat supply are part of normal production rather than an exception.

For a buyer, the practical value is fewer hand-offs. When a hood does not sit right on a new pallet format, there is one technical contact who can look at the machine, the load and the film together instead of three suppliers pointing at each other.

Ordering & Delivery

  1. Send the load details — pallet footprint (length × width × height), load weight and how the bags are stacked. This is what we size custom stretch hood film against, together with the height the hood has to reach.
  2. Name the machine — hooding machine make and model, plus the film width and gauge you run today if this is a replacement. As a stretch hood film supplier we use that to fix folded width, film type and roll length.
  3. Describe the storage conditions — indoor warehouse, open yard or export container. That decides whether UV stabilization is worth adding to the specification.
  4. Confirm print and colour — send artwork or a sample of your current film if you print, and tell us which colour direction you prefer for load identification.
  5. Agree the commercial terms — order quantity, price, lead time, payment terms and shipping arrangements are confirmed with your sales contact for each order and destination, so nothing about volume or timing is fixed until then.
  6. Ask about a trial — sample availability and trial-roll arrangements are confirmed with your sales contact before a full production run, so the film can be tested on your machine and your own load.

Technical Support & Model Matching

Involving our technical team early makes specification easier. Tell us what you are packing, how your line or handling process works and what your machine expects, and we will help you match the right option in our range to your operation, including the settings that suit your conditions. If something does not run as expected, we work through the problem with you, suggest adjustments, and guide setup and first runs. Support continues after delivery, and we are glad to review requirements before you order.

FAQ

Q1. Does stretch hood film need heat or a shrink tunnel?

No. Elastic recovery does the holding. The sleeve is stretched open mechanically, drawn down over the pallet and released, and the film wants to return to its original size — the load prevents it, so the film stays under tension and keeps the bags compressed. Because nothing is heated, there is no tunnel to run and no cooling stage before the pallet can be moved.

Q2. How do we choose the folded width and gauge for our pallets?

Folded width is set from the pallet footprint and the hooding machine together — the sleeve has to clear the widest part of the load and still come down to the base. The gauge decision comes from the load itself: weight, density and how sharp the bag corners are. Send the pallet dimensions, load weight and machine make, and we will come back with a custom stretch hood film specification for that combination rather than the nearest stock size.

Q3. Do you supply film for different hooding machine brands?

We match the film to the machine you run rather than to a generic size. As a stretch hood film supplier we work from the make and model, the film width and gauge currently on the machine, and the pallet formats you handle. If a new machine is being installed, send the machine specification and the loads it will run, and the film can be specified before the line starts up.

Q4. Will the hood hold on sharp-cornered or heavy bagged loads?

That is where puncture and tear resistance matter most. Bag corners, pallet board edges and the corner of a dense mineral load all concentrate stress on a small area of film, and a hood that tears at one corner loosens across the whole pallet. An industrial stretch hood with the right gauge for the load resists that far better than a light wrap film, and the closed sleeve keeps its tension even when one corner is carrying the load.

Q5. Can the film be printed or supplied in a colour?

Printing is optional and made to your artwork, and the film can be supplied clear, opaque white or coloured. Print is normally used for brand and load identification, and it is registered to your design so the hood carries the brand rather than a blank sheet.

Q6. How consistent is the film from roll to roll?

Gauge, folded width and roll build are fixed once and repeated on every run. As the stretch hood film manufacturer we blow the film in-house, so a repeat order is produced on the same lines to the same specification instead of being sourced from whichever converter has stock. That is what lets an automatic hooding machine hold its settings across a full shift.
