PE Valve bags

No.003
Valve bags are primarily used for packaging powdered or granular materials—such as food powders, chemical powders, fertilizers, synthetic materials, explosives, grains, salt, and minerals—as well as flexible items. They are particularly suitable for export companies, as they enhance the quality of product packaging.
Download
View all downloads
  • PE Valve bags,JM PACKAGING,PE Valve bags
  • PE Valve bags,Jiangmei Packaging,PE Valve Bags—Specialized Filling Valves
  • PE Valve bags,Jiangmei Packaging,PE Valve Bags—Specialized Filling Valves

Description

Product Overview

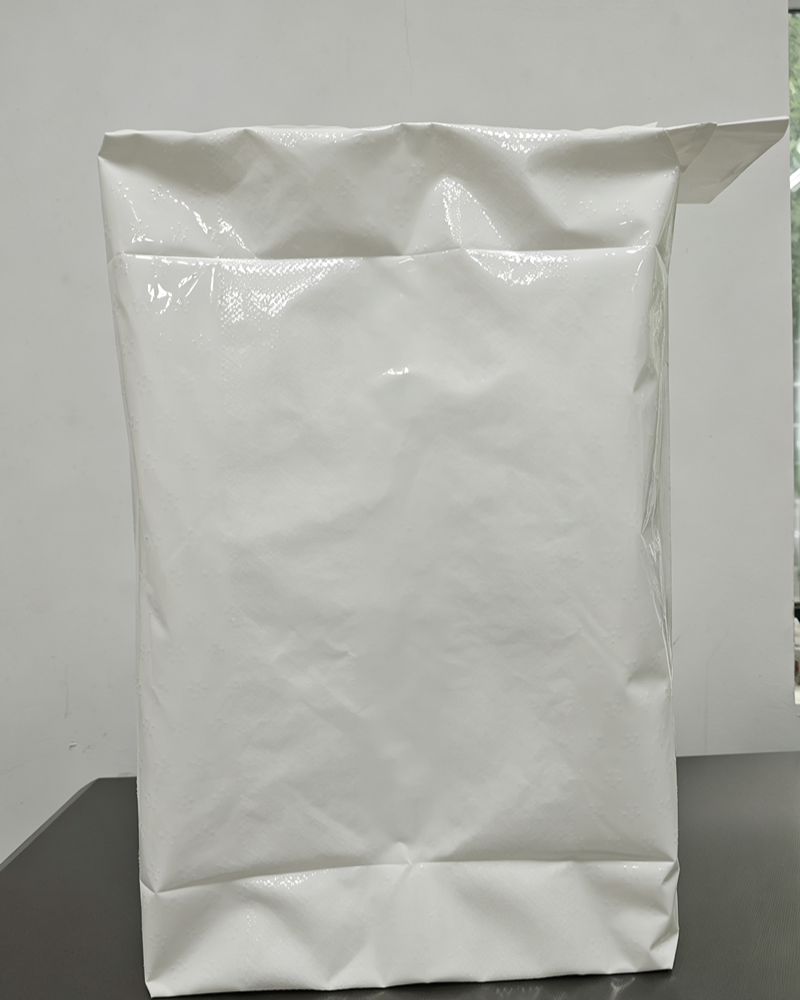

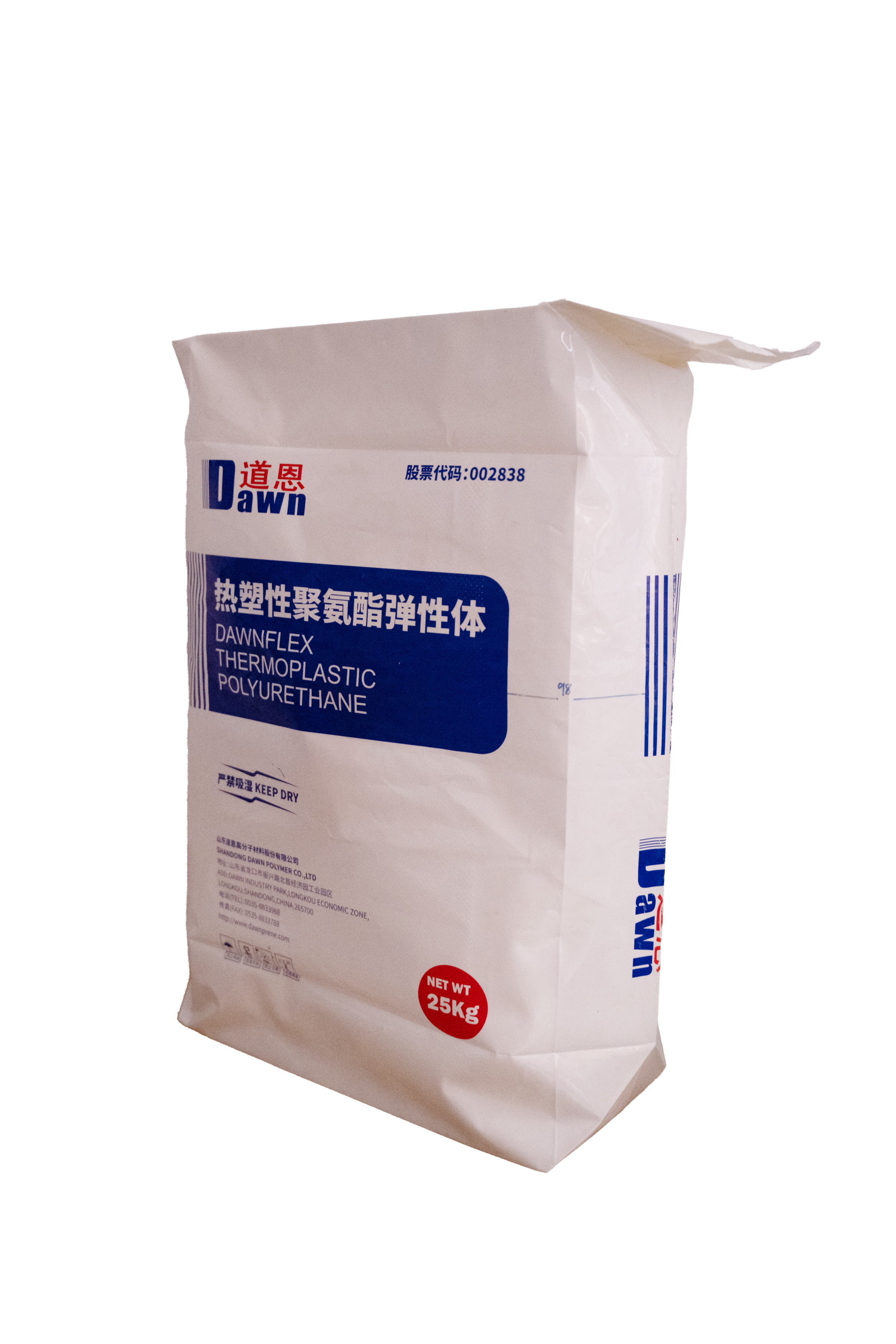

A PE valve bag is a heavy-duty polyethylene sack with a small filling valve built into one corner. The empty bag is pushed onto the filling spout, product is blown or gravity-fed in through the valve, and the pressure of the filled bag presses the valve shut behind it.

That one detail changes how a packing hall runs. Bags reach the pallet already closed and dust-tight, so the closing station and the queue in front of it disappear from the end of the line. Fine powder stays inside the bag instead of settling on the floor, the machine frame and the operator, and the shut valve keeps moisture away from the product through warehouse storage and sea freight.

Our valve bags are made from heavy-duty PE film blown in our own plant and converted with the valve set in the position your filler needs. Bag size, film thickness, valve type and print are all made to order, so what arrives is the bag that suits your line rather than one that comes close. We are a PE valve bags supplier to cement plants, mortar producers, fertilizer blenders, mineral processors and compounders, and we build from your product and filling machine details rather than from a standard size list.

Key Features

Feature Benefit
Self-closing valve No stitching or sealing step — faster packing, less labour per pallet
Dust-tight filling A cleaner workshop, less product lost to dust and safer handling for the operator
Heavy-duty PE film, made in-house Stable gauge and high tensile strength, roll after roll
Moisture barrier Protects moisture-sensitive powders in storage and in transit
Custom valve types and positions Matched to your filling machine and spout
Custom printing Brand visibility on every bag that leaves the plant

Filling Cycle Step by Step

  1. Mount the empty bag on the filling spout with the valve facing the spout. Valve bags fill through that valve, never through an open top, so there is no bag mouth to hold open or line up.
  2. Product is blown or gravity-fed through the valve at line speed — the same way cement, dry mortar and chemical packaging bags of fertilizer or mineral powder are filled on a spout.
  3. As the bag fills, internal pressure pushes the valve closed behind the product. Once the bag is full and has settled, the valve stays shut.
  4. Lift the closed bag straight onto the pallet. The pack is finished the moment it comes off the spout, so the pallet builds while the filler keeps running.
  5. Repeat. Because nothing has to be closed afterwards, one operator can run a spout that would otherwise need a second person at a closing station, and the area around the filler stays clear through the whole run.

Typical Applications

  • Cement and dry mortar. The classic valve-bag job: fast filling through a spout, a pack that stays sealed afterwards, and a square base that stacks squarely. Dust control here is not cosmetic — it is what keeps the working area safe and the product inside the bag.
  • Chemicals and fertilizers. Powder and granular grades that need moisture protection between the filling line and the customer. These are the chemical packaging bags we build most often, and the valve keeps fine chemical dust out of the air while the bag fills.
  • Minerals and industrial powders. Bulk powder packaging for heavy loads that need tear resistance as much as a clean fill, especially where bags are dropped or drag-stacked in the warehouse.
  • Masterbatch and plastic compounds. Pellet and powder forms packed cleanly, with the option of print that carries grade and batch details on the bag itself.
  • Salt, seeds and agricultural granules. Free-flowing products where filling through the valve keeps the bag clean and the pallet presentable for wholesale and export.
  • Food powders. Cocoa, flour-type powders and similar products, where food-contact documentation can be requested for the specific application.
  • Specialty and regulated solids. Explosives and other sensitive materials are packed in valve bags where the carrier and destination rules are agreed in advance.
  • Flexible items. A sealed PE sack also suits flexible goods that need a closed, dust-tight pack rather than a rigid outer.

Specifications

Item Options
Material Heavy-duty PE (LDPE / LLDPE blend)
Bag width 250–1180 mm
Bag length 180–635 mm
Bottom width 70–220 mm
Thickness 80–200 μm
Load capacity 10–50 kg
Valve Internal valve / External valve
Bottom Square base
Printing Up to 6 colors, custom design
Packaging Palletized

Valve, Size and Machine Fit

  • Match the valve to the spout. The valve has to seat on your spout without the operator wrestling the bag into place, so its type and position are set from the machine rather than picked from a list. Send the filler make and spout details and we build to them.
  • Fill weight and bulk density. A light, fluffy powder needs more bag volume for the same kilo than a dense mineral does. Give us the product and the target fill weight and the bag width and length follow from that, instead of being trimmed from a catalogue size.
  • Film thickness against handling. Heavier fills, rough pallet handling and long export chains justify a thicker gauge; short local runs on well-controlled pallets can run lighter and still hold.
  • Bottom width and stacking. The square base sets the footprint of the filled bag, so it decides whether your pallet pattern works out and how stable the stack is in transit.
  • Custom PE valve bags, not adapted standards. Valve, position, dimensions, film thickness and print all move together, so the bag is built to the agreed specification rather than modified after the fact.
  • What to send us. Product name and grade, target fill weight, filling machine make and spout type, the pallet pattern you want, and whether the bag has to carry print. As a PE valve bags supplier we would rather ask twice at the sample stage than ship a full order that will not seat on the spout.

Valve Bags vs. Open-Mouth Bags

The two formats solve different problems at the filling station, and the choice usually comes down to how the bag is filled rather than to what goes inside it.

Take valve bags when the product goes in through a spout at line speed and you want the pack closed the moment it leaves the spout. The saving shows up at the end of the line: no closing station, no queue of open bags waiting to be sealed, and far less dust in the room while the bag fills. That is why cement, mortar and a large share of bulk powder packaging for construction and chemicals runs on this format.

Take open-mouth bags when the bag is filled with a scoop, a chute or a semi-automatic filler and then closed by sewing or heat sealing. Open-mouth bags remain the practical choice for short runs, for products that change often, and for hand-filled operations where the extra closing step costs less than setting up a valve filler. Large print areas are also easier to carry on an open-mouth bag, which matters when the bag has to work on a shelf as well as on a pallet.

In-House Production and Quality Control

  1. Film blowing. PE film is extruded at our plant in Changxing, Zhejiang, which has been running since 2008 and covers 60,000 m². Because we blow the film ourselves, gauge and tensile strength stay consistent from roll to roll instead of shifting with each outside delivery.
  2. Printing. Artwork goes onto the film in up to six colours before conversion, so registration and colour hold on the finished bag.
  3. Conversion. Film is cut, folded, the square base is formed and the bag is built to the agreed dimensions.
  4. Valve insertion. The valve is set into the corner in the type and position the filling line needs — this is the step that decides whether the bag seats cleanly on the spout.
  5. Inspection. Bags are checked through the run for valve seating, base seals, dimensions and print quality, and the approved specification stays on file so a repeat order runs the same way as the first.
  6. Palletizing and dispatch. Finished bags are packed on pallets for export handling. Output runs to 20,000 tonnes of PE packaging a year, including 30 million valve bags, and we export to the Middle East, Latin America and beyond.
  7. Certification. The plant is certified to ISO 9001, ISO 14001 and ISO 45001, and as a valve bags manufacturer we keep the process documented rather than relying on memory between orders.
  8. Other formats from the same plant. FFS film rolls, FFS bags, PE open-mouth bags, paper-plastic composite open-mouth bags, FIBC bulk bags and liners, bag closing thread and aluminum foil barrier bags — useful when one packing hall needs more than one bag format from a single source.

Ordering and Delivery

  • Start from the specification. Product and grade, target fill weight, filling machine and spout type, pallet pattern, print requirements and destination — that is what a quotation is built on.
  • Everything is made to order. Bag size, film thickness, valve type and position and printing are set for each run, so a change to any of them changes the tooling and the price. Confirm the full specification before the first production run.
  • Lead time and minimum order quantity depend on the specification and the season. Ask your sales contact for the current figure for the quantity you have in mind.
  • Samples. Ask your sales contact about sample availability and what a trial on your own filler would need.
  • Printing. Send finished artwork with the dieline and colour references, and ask for a proof before the run so colour and print position are agreed in advance.
  • Packing and shipping. Bags ship palletized as standard. Confirm pallet size, labelling and any carrier requirements for your destination.
  • Payment and documents. Terms, currency and export paperwork are agreed per order — as a PE valve bags supplier we confirm them in writing on the order confirmation.

Pallet Stacking & Load Stability

Why the base decides the stack

A filled bag that slumps into a pillow shape rolls, the pallet pattern drifts, and a load that left the plant square arrives at the customer's yard leaning. The square base is what prevents that. The bottom is folded and sealed into a flat rectangle during conversion, so the bag stands on its own footprint while empty and keeps a flat bottom once the product settles inside. Bags then sit face to face rather than settling into each other, and each layer stays where it was placed.

Footprint before pallet pattern

Base width runs from 70 mm to 220 mm depending on bag size and fill weight, and that single figure sets how many bags fit across a standard 1200 × 1000 mm pallet and how the layers tie together. Send us the pallet size and the pattern you intend to run, and the base width is built to it instead of leaving your warehouse to rework the pattern around a stock base.

Fill weight against base area

A 10 kg bag of light powder and a 50 kg bag of dense mineral do not want the same footprint. A heavier fill lowers the centre of gravity and presses the base flatter — but only if the base is wide enough for that weight. A base too narrow for the load produces a tall, top-heavy bag that tips at the first sharp turn of a forklift. Tell us the target fill weight and bulk density and the base width is set from those, not from the bag length alone.

Stack height and film gauge

Every bag in the stack carries the weight of everything above it, so stack height, storage time and film thickness are chosen together. Within the 80–200 μm range, taller stacks and longer storage justify a heavier gauge; short runs on low pallets can run lighter. Confirm the height you actually intend to build to, because a pattern that is stable at six layers is not automatically stable at twelve.

Wrapping and transit

Filled bags are palletized as standard, and the load is wrapped or hooded before it leaves the plant. Because the valve closes on itself, no open cuff stands proud of the bag to catch on the wrap or snag the layer above. The closed valve also keeps the pallet clean on the outside — no dust trail down the sides of the stack, which matters when the load goes into a customer's warehouse or a container for export. Pallet protection can come from the same plant, including stretch hood film that covers the top and four sides in one cycle.

Before the first run

Send pallet dimensions, the stack height you want to build, target fill weight and how the pallet will be secured. A trial pallet run on your own filler is the quickest way to confirm the pattern, the footprint and the wrap before a full order is placed. For bulk powder packaging that travels by sea, we would rather adjust base width at the sample stage than ship a container of bags that will not stack squarely.

Technical Support & Model Matching

Involving our technical team early makes specification easier. Tell us what you are packing, how your line or handling process works and what your machine expects, and we will help you match the right option in our range to your operation, including the settings that suit your conditions. If something does not run as expected, we work through the problem with you, suggest adjustments, and guide setup and first runs. Support continues after delivery, and we are glad to review requirements before you order.

FAQ

Q1. What actually closes the bag — is there a closure we have to add?

Nothing is added. The valve is a short sleeve folded into the bag corner: product flowing in inflates it, and when filling stops and the product settles, the pressure inside presses the sleeve flat and it stays shut. A settled PE valve bag travels without leaking, and the fuller it is packed, the more firmly the valve holds.

Q2. Can one set of valve bags run several products on the same line?

Often, yes — where the grades are similar in bulk density and flow, the same bag and valve will handle them. What changes is the fill weight and how the product behaves at the spout, so re-check the target weight and run a few bags before committing a full pallet run. Where densities differ a lot, the bag volume has to change with them.

Q3. Internal valve or external valve — which do we need?

It follows from the spout and from how filled bags are handled. An internal valve sits inside the bag mouth, so it is protected during stacking and transport; an external valve presents the sleeve on the outside of the bag where a filler needs to reach it. We build custom PE valve bags either way and set the valve to your machine, so the useful answer comes from the spout details rather than from a default choice.

Q4. Our powder is hygroscopic. Is a PE wall enough?

For most mineral, cement and fertilizer grades, heavy-duty PE keeps moisture out through normal storage and transport. Powders that pull moisture quickly may justify a heavier barrier than a single PE wall, and that is worth raising before the specification is fixed. Tell us the product and where it will be stored, and we will confirm what the chemical packaging bags for that grade should be built from.

Q5. Do the filled bags stand up on the pallet?

Yes. The square base gives the filled bag a flat bottom, so it stands on the pallet instead of slumping into a pillow shape. Bags sit squarely on each other, the pallet pattern stays predictable, and the load is easier to wrap and ship — one of the reasons bulk powder packaging on valve bags travels so well.

Q6. Can you print our brand and product details on the bag?

Up to six colours, printed to your design — brand mark, grade, batch details, handling symbols, whatever the bag has to tell the customer. Every run of custom PE valve bags is printed to an approved proof, so colour and print position are settled before the bags are made.
